·Description：
1.With a spindle for lower sawing, a fully-enclosed protective cover and an electronic positioning rule, it can realize manual lifting of spindle and electric lifting of pressing frame.

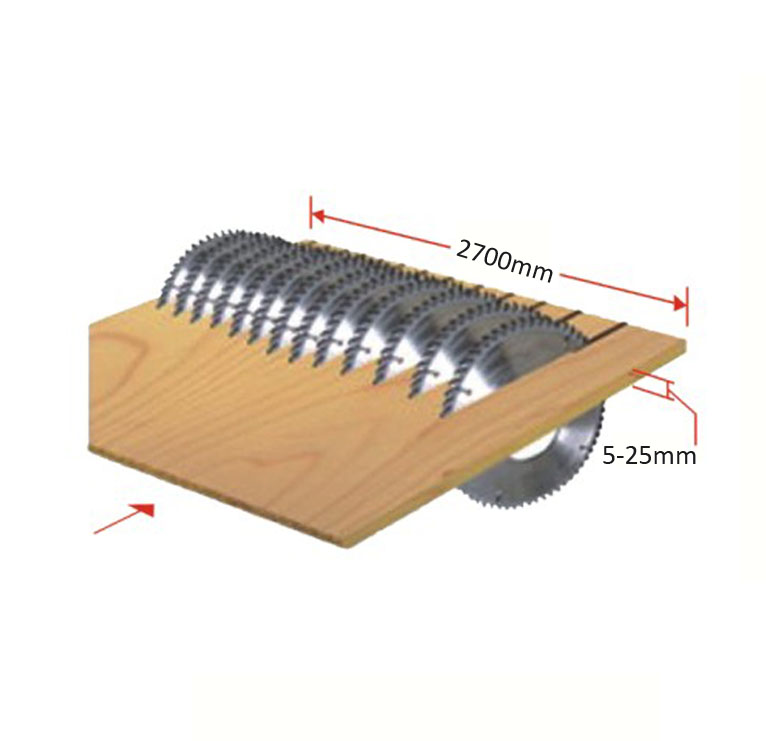

2.Widely used for cutting and grooving of density boards, composite boards and non-wood fillers.
·Specification：
| model | KMBS2700-X |
| 型号 | |
| place of origin | Guangdong,China |
| 产地 | 中国广东 |
| width of workpiece | max:2700mm |
| 工件宽度 | |
| thickness of workpiece | max:30, min:5mm |
| 工件厚度 | |
| length of workpiece | min 800mm |
| 工件长度 | |
| spindle dia. | 100mm |
| 主轴直径 | |
| spindle rpm | 2600 r/min |
| 主轴转速 | |
| saw blade dia. | 180-220mm |
| 锯片直径 | |
| power of spindle motor | 11kW |
| 主轴电机功率 | |
| power of feeding motor | 1.5kW |
| 送料电机功率 | |
| total power | 12.5kW |
| 总功率 | |
| feeding speed | 0-12m/min |
| 送料速度 | |
| qty of feeding roller | 6sets/12pcs |
| 送料棍组数/条数 | |
| dust collector outer dia. | 150mm |
| 排屑管外径 | |
| overall dimension | 2500x3700x1500 mm |
| 外形尺寸 | |
| weight | 3500kg |
| 重量 | |
| power source | 380V, 50Hz,3P |
| 电源 | |
| CE certificate | √ |
| CE认证 |
