Sawing Machine

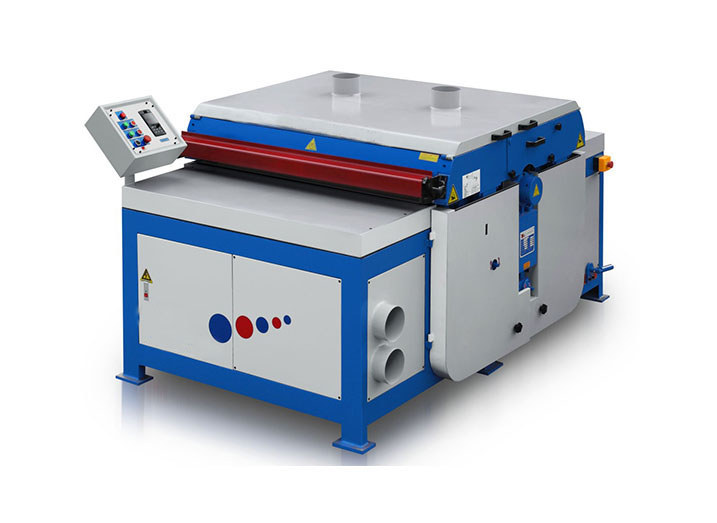

Multiple Blade Saw Series/Multi Rip Saw

·width of workpiece：400-2500mm
·thickness of workpiece：5-60mm
·power source：380V, 50Hz,3P
·with CE certificate
Product description: Multiple Blade Saw Series/Multi Rip Saw
INQUIRY EMAIL

·Description：

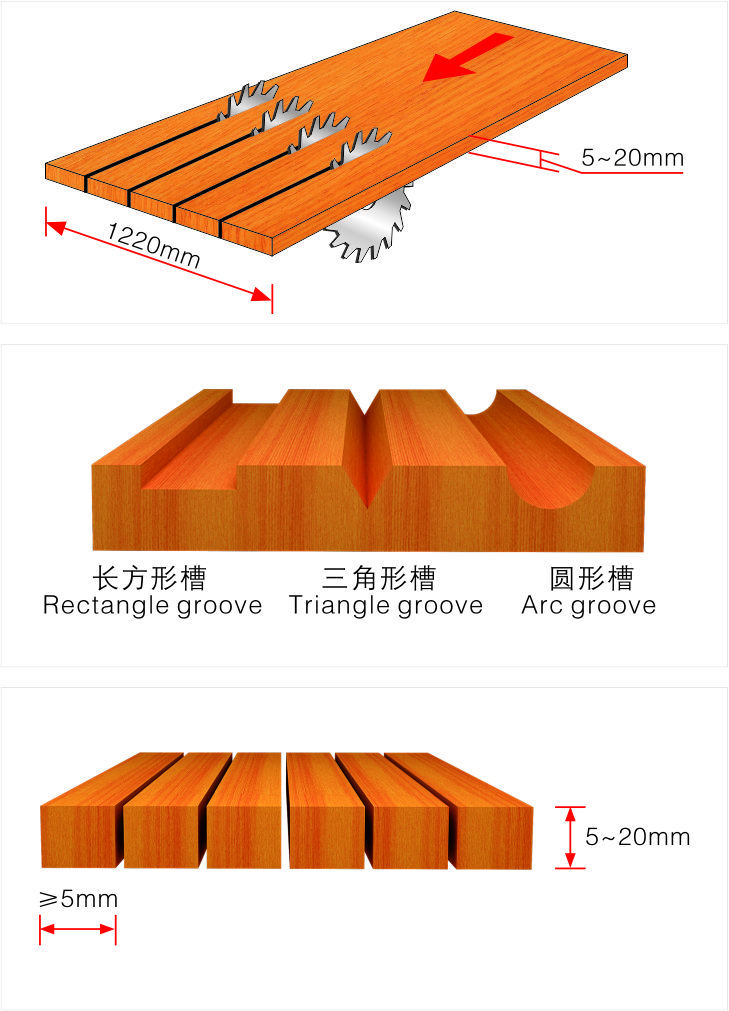

1. max width of workpiece is 400-2500mm，can be customized
2. hot selling for over 25 years, ranking Top 3 in China
3. the ideal choice for mass production of wooden furniture, door and floor
4. with CE certificate, customized and OEM service are available

·Specification：

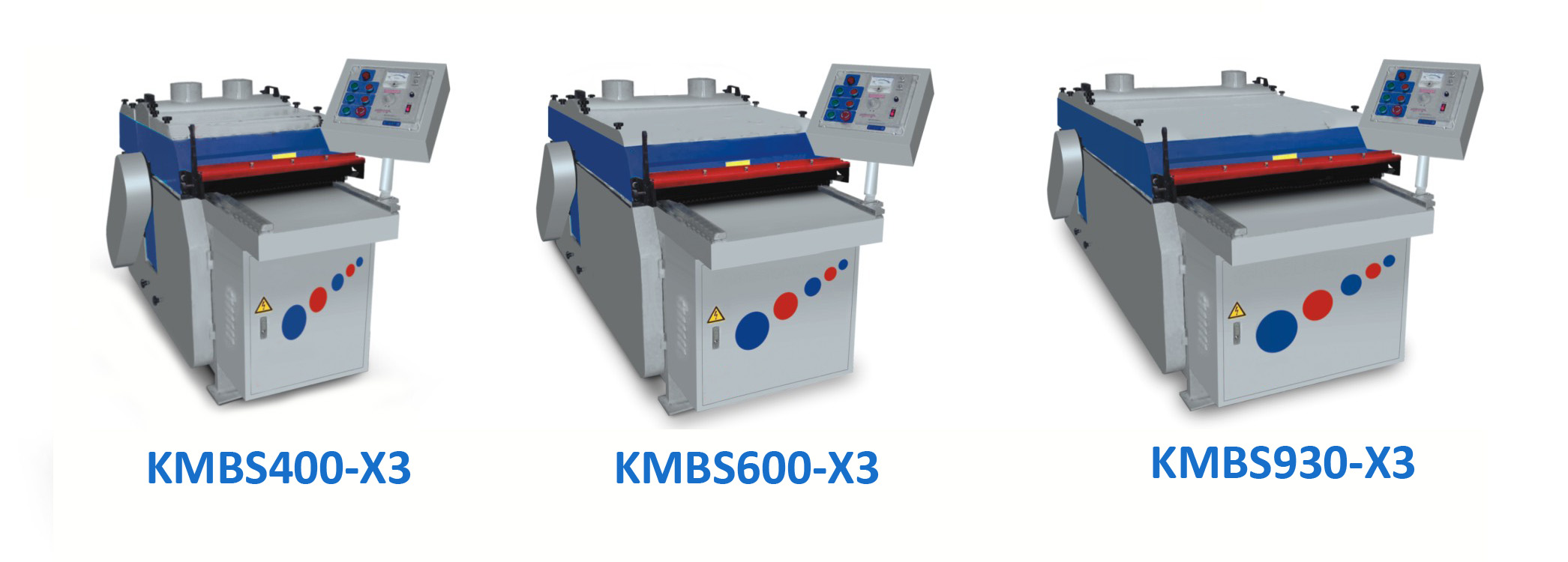

model	KMBS1300-X2	KMBS1300-X3	KMBS1300-XD3	KMBS1300-XD4	KMBS1300-XT2
型号
place of origin	Guangdong,China	Guangdong,China	Guangdong,China	Guangdong,China	Guangdong,China
产地	中国广东	中国广东	中国广东	中国广东	中国广东
width of workpiece	max:1220mm	max:1220mm	max:1220mm	max:1220mm	max:1220mm
工件宽度
thickness of workpiece	max:35, min:5mm	max:35, min:5mm	max:60, min:5mm	max:60, min:5mm	max:30, min:5mm
工件厚度
length of workpiece	min 550mm	min 550mm	min 600mm	min 600mm	min 800mm
工件长度
spindle dia.	74mm	74mm	85mm	90mm	74mm/piece, 2pcs
主轴直径
spindle rpm	2600 r/min	2600 r/min	2600 r/min	2600 r/min	2600 r/min
主轴转速
saw blade dia.	205mm	205mm	255mm	270mm	205mm
锯片直径
power of spindle motor	11kW	22kW	37kW	45kW	15kW/piece, 2pcs
主轴电机功率
power of feeding motor	1.5kW	1.5kW	2.2kW	2.2kW	3kW
送料电机功率
total power	12.5kW	23.5kW	39.2kW	47.2kW	33kW
总功率
feeding speed	0-12m/min	0-12m/min	0-12m/min	0-12m/min	0-12m/min
送料速度
qty of feeding roller	4sets/8pcs	6sets/12pcs	7sets/14pcs	8sets/16pcs	6sets/12pcs
送料棍组数/条数
dust collector outer dia.	150mm	150mm	150mm	150mm	150mm
排屑管外径
overall dimension	1850x1800x1250 mm	2200x1800x1250 mm	2900x1800x1400 mm	2900x1800x1400 mm	2500x1800x1250 mm
外形尺寸
weight	1800kg	2200kg	2300kg	2800kg	2500kg
重量
power source	380V, 50Hz,3P	380V, 50Hz,3P	380V, 50Hz,3P	380V, 50Hz,3P	380V, 50Hz,3P
电源
CE certificate	√	√	√	√	√
CE认证
