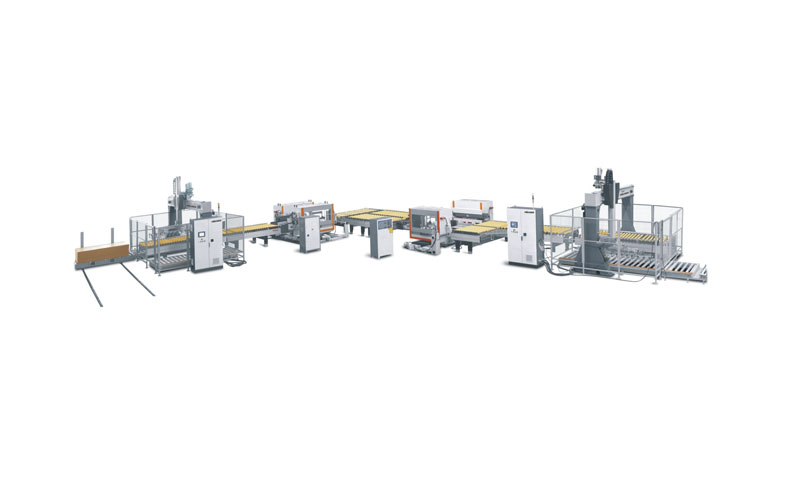

Automation Production Line

  • Automatic Sawing and Milling Production Line
  • Automatic Sawing and Milling Production Line
Automatic Sawing and Milling Production LineAutomatic Sawing and Milling Production Line

Automatic Sawing and Milling Production Line

  • ·length of workpiece:300-2400mm
  • ·width of workpiece:280-1200mm
  • ·thickness of workpiece:8-60mm
  • ·loading/unloading speed:7pcs/min
  • Product description: Automatic Sawing and Milling Production Line
  • INQUIRY   EMAIL

·Description:

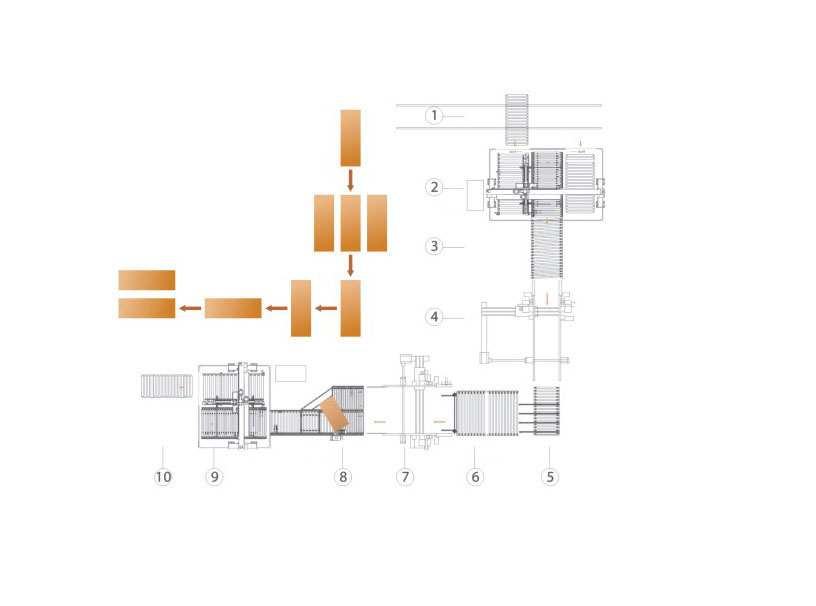

1. Three-station gantry loader and two-station gantry stacker are adopted to ensure stable loading and unloading without stopping feeding.
2. It can realize automatic loading, tenoning, sizing, milling and other processes.
3. Equipped with european standard safety protection device.
4. Vacuum suction is adopted to effectively avoid damaging the surface of the workpiece, it's especially suitable for the processing of veneer.

·Specification:

length of workpiece 300-2400mm
工件长度
width of workpiece 280-1200mm
工件宽度
thickness of workpiece 8-60mm
工件厚度
weight of workpiece max 50kg
工件重量
height of stacking max 1300mm
堆垛高度
loading/unloading speed 7pcs/min
上料/下料速度
