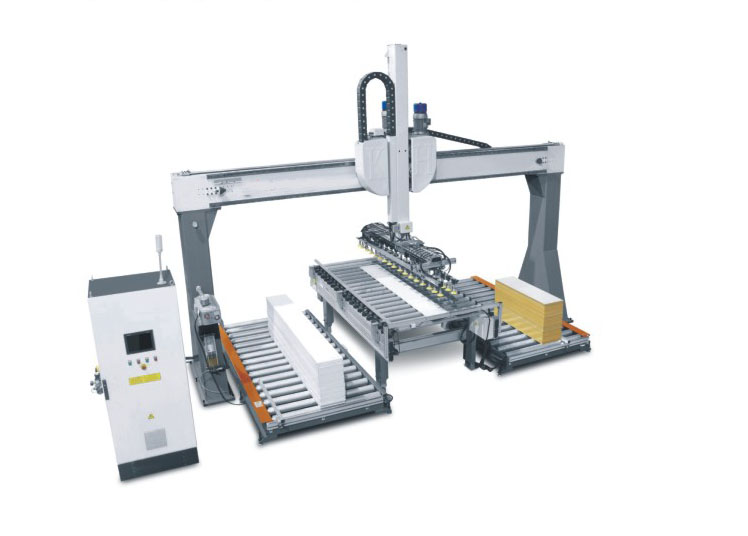

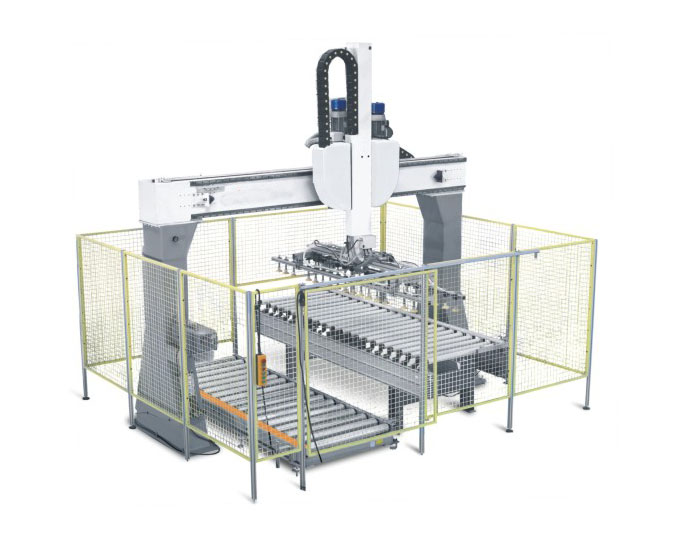

Two/Three-Station Gantry Loader and Stacker

  • ·length of workpiece:280-3000mm
  • ·width of workpiece:250-1300mm
  • ·thickness of workpiece:10-60mm
  • ·weight of workpiece:max 60kG
  • Product description: Two/Three-Station Gantry Loader and Stacker
  • INQUIRY   EMAIL

·Description:

1. The main structure of heavy steel frame is adopted to ensure stable operation.
2. Adopt imported high standard synchronous belt, slide rail, electrical components and pneumatic components.
3. Automatic immersed lubrication system.

·Specification:

name Three-Station Gantry Loader and Stacker Two-Station Gantry Loader and Stacker
名称 三工位龙门式上下料机 二工位龙门式上下料机
length of workpiece 280-3000mm 280-3000mm
工件长度
width of workpiece 250-1300mm 250-1000/1300mm
工件宽度
thickness of workpiece 10-60mm 10-60mm
工件厚度
weight of workpiece max 60kG max 60kG
工件重量
working cycle ≤9 times/min ≤9 times/min
工作周期
total power 12kW
总功率
overall size 4000×4900×3000mm
设备尺寸
net weight 2100kg
净重约
