Automatic Stainless Steel Bar Chamfering MachineAutomatic Stainless Steel Bar Chamfering Machine

Automatic Stainless Steel Bar Chamfering Machine

  • ·workpiece:stainless steel bar
  • ·workpiece shape:round , hexagon
  • ·chamfering degree:30°/45°/60°
  • Product description: Automatic Stainless Steel Bar Chamfering Machine
  • INQUIRY   EMAIL

·Description:

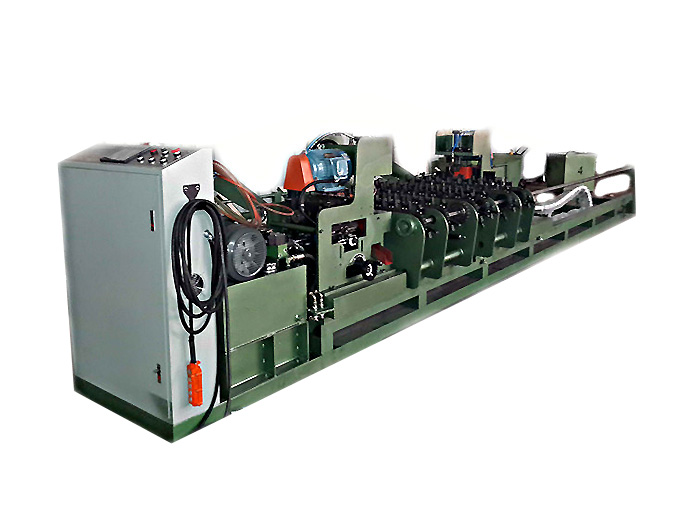

This is fully automatic stainless steel bar chamfering machine, it consists of:1.auto feeding-in device 2.double-head milling unit 3.double-head chamfering unit 4.case body 5. feeding-out device 6. electrical control system. This machine is under PLC controlled, can realize full automatic milling and chamfering, easy to operate and greatly save you labor cost. Different kinds of workpiece are available according to customers's requirement.Processing speed can be controlled by frequency conversion.


·Specification:

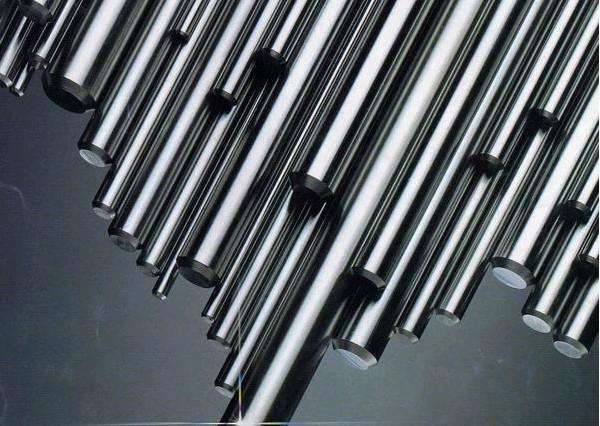

raw material stainless steel bar
原材料 不锈钢棒材
bar Shape round , hexagon
棒材形状 圆棒,六角棒
bar diameter 4 –12mm 10 –30mm 25 –100mm
棒材直径
bar length 3.0 – 6.3m 3.0 – 6.3m 3.0 – 7.3m
棒材长度
working speed 18 – 21 pcs/min 14 – 18 pcs/min 5 – 12 pcs/min
加工速度
motor power 10 kW 14.5 kW 30 kW
电机功率
chamfering degree 30︒, 45︒ , 60 30︒, 45︒ , 60 30︒, 45︒ , 60
倒角角度
machine weight 4,500 kg 7,600kg 12,200kg
机器重量
