Hot Customized Machines

  • Full-automatic Ear-loop Welding Machine

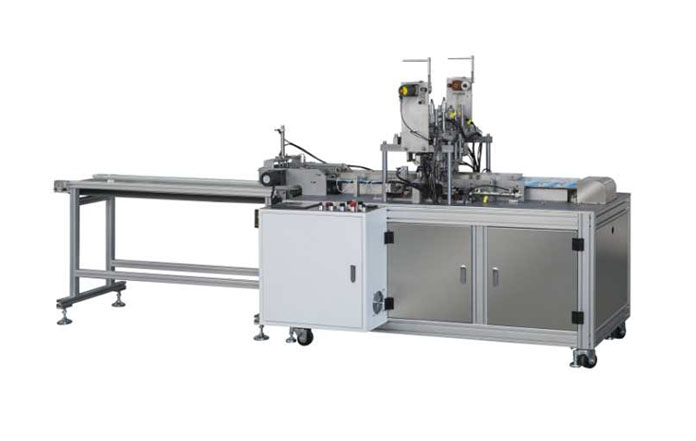

Full-automatic Ear-loop Welding Machine

Full-automatic Ear-loop Welding Machine

  • ·capacity: 20-25pcs/min
  • ·total power:2.5kW
  • ·overall dimension: 1500*800*1600mm
  • ·weight:200kG
  • Product description: Full-automatic Ear-loop Welding Machine
  • INQUIRY   EMAIL

·Description:

1.It's combined ultrasonic welding technology with photoelectric control,can automatically weld the two spots of ear-loop on the mask blank at a time, greatly improves the efficiency.
2.Work flow: the mask blank and ear-loop feeding→cutting→bending→welding→finished product
3.It's specially designed for welding ear-loops with all kinds of non-woven masks, including disposable mask, medical surgical masks, KN95 mask, N95 mask,  etc.
4.Welding time is adjustable according to different kinds of masks.
5.It can replace the traditional welding process, clean and pollution-free, and it won't damage the object.
6.Tracking and monitoring through software system, easy to troubleshoot and maintain.


·Specification:

mask size 230*110mm
口罩尺寸
material required non-woven fabric
所需原料 无纺布
capacity 40-50pcs/min
产能
control system PLC
控制系统
power 3.5kW
功率
voltage 220V
电压
overall dimension 2000mm*1000mm*1450mm
外观尺寸
net weight 360kG
净重
warranty 1 year
保修期
after-sale service online technical support, overseas maintenance(if necessary)
售后服务 在线技术支持,海外维护(如有必要)
