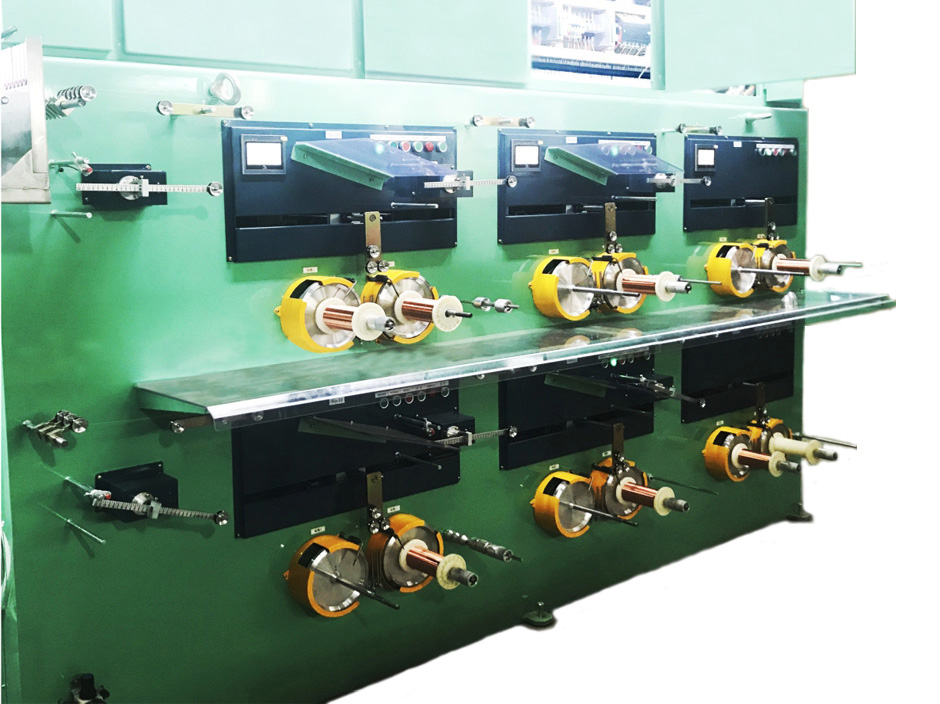

Enameling Machine

  • ·wire Dia.:φ0.022-0.0030mm,φ0.025-0.035mm
  • ·speed:350-380m/min
  • ·Qty of line:12/20/24
  • ·wire pitch:5mm
  • Product description: Enameling Machine
  • INQUIRY   EMAIL

·Description:
They have been supplied to Midea for years.
·Specification:

wire Dia. φ0.022-0.0030mmφ0.025-0.035mm
线径
wire pitch 5mm
线距
Qty of line 12/20/24
头数
speed 350-380m/min
速度
bobbin tyoe PL-2, PL-4, P-600S, HKV80, HKV125
线轴类型
spooling capacity 2-4kg
收线重量
bobbin changing method semi-auto/full-auto
换轴方式 半自动/全自动
traversing method separate/entire
排线方式 独立/整体
standard spool φ320φ360φ400
标准盘尺寸
traversing method servo motor/ stepper motor + synchronous belt
排线方式 伺服电机/步进电机+同步皮带
enamelling passes single-8, double-8+2
涂漆道数 铜、铝合金
enamelling method metering pump+felt
涂漆方式 计量泵和毛毡
tatal installed power about 65kW
总装机功率
